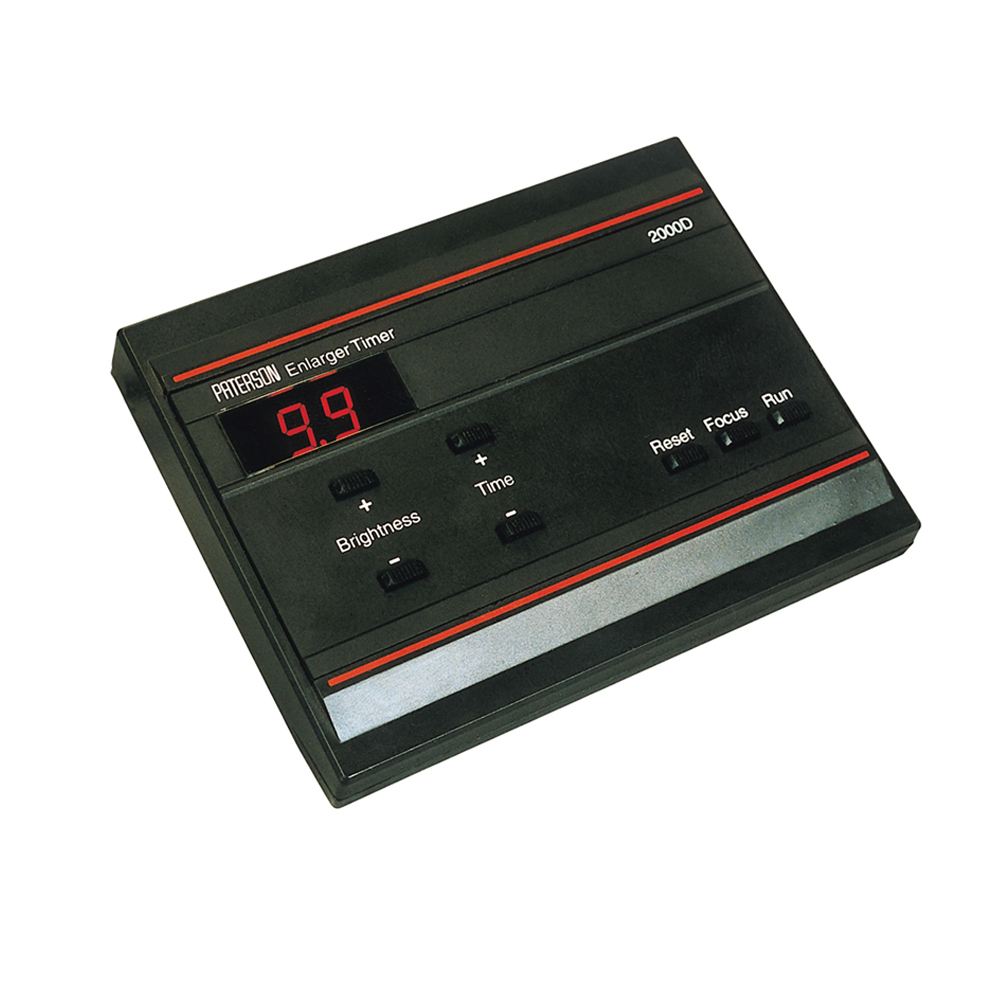

Paterson 2000D Enlarger Timer

£86.66

Download Factsheet

budget, mains operated, digital enlarger timer that can be set from 0.1 to 9.9 seconds in 0.1 second increments or from 10 to 99 seconds in one second increments. The brightness of the LED display can be adjusted to individual requirements.

Simple, easy to use layout; Adjustable LED brightness; Timing can be interrupted and restarted; Accuracy better than 0.1%; Suitable for enlarging lamps of up to 5 amps; Supplied with plug for enlarger.

– Power supply: 220/240V 50Hz
– Timing range: 0.1 to 9.9 or lO to 99 seconds
– Accuracy: 0.1%
– Lamp switching capacity: 5 amp max
– Dimensions: 7 x 5.5 x 2.5in (18 x l4 x 6.5cm)

SKU: PTP745 Categories: , Tags: ,

Description

Mains operated digital timer for very accurate exposure timing when using an enlarger.
The timer can be set in 0.1 second increments from 0.1 to 9.9 seconds, or in one second
increments from 10 to 99 seconds. The display brightness can be adjusted to suit
individual requirements. The timer is available in both 230 and 110 volt versions.
Available with “UK, American, Australian, and European Plug”
The timer should be connected between the electricity supply outlet and the enlarger
when the enlarger uses a mains voltage lamp. If the enlarger has a low voltage lamp
operated from a transformer, the timer should be connected between the mains outlet
and the transformer.
The time is set using the + or – buttons. Timing begins when the start button is pressed.
The timing can be interrupted at any point by pressing the start button. Once the time set
is reached the enlarger switches off and the previously set time is again set ready for a
further exposure. If the timing cycle is interrupted the previously set time can be restored
by pressing the reset button.

Additional information

Geographical area

"UK" "USA" "EU" "AUS"
